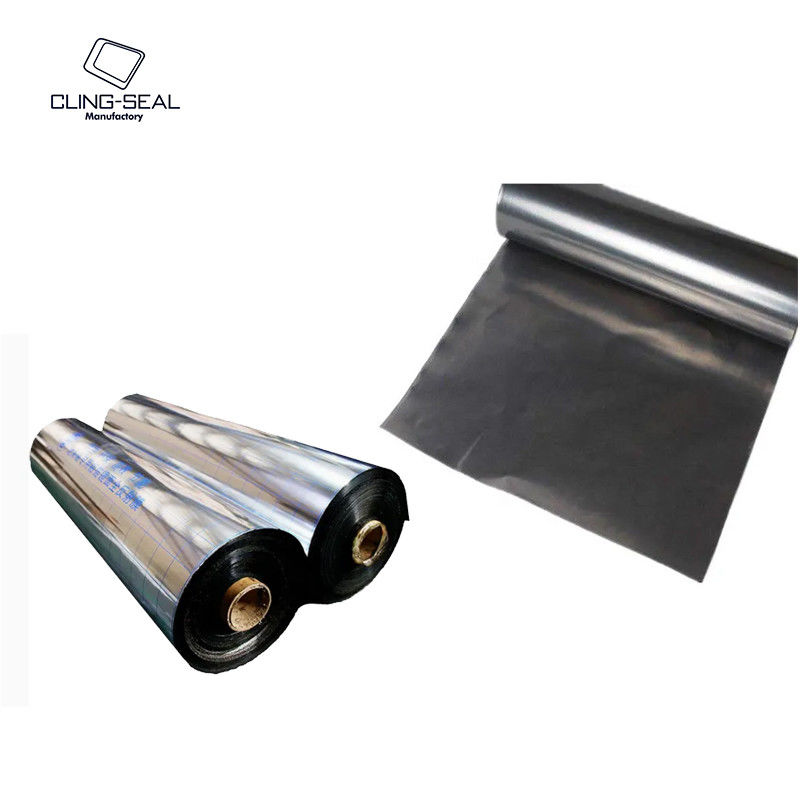

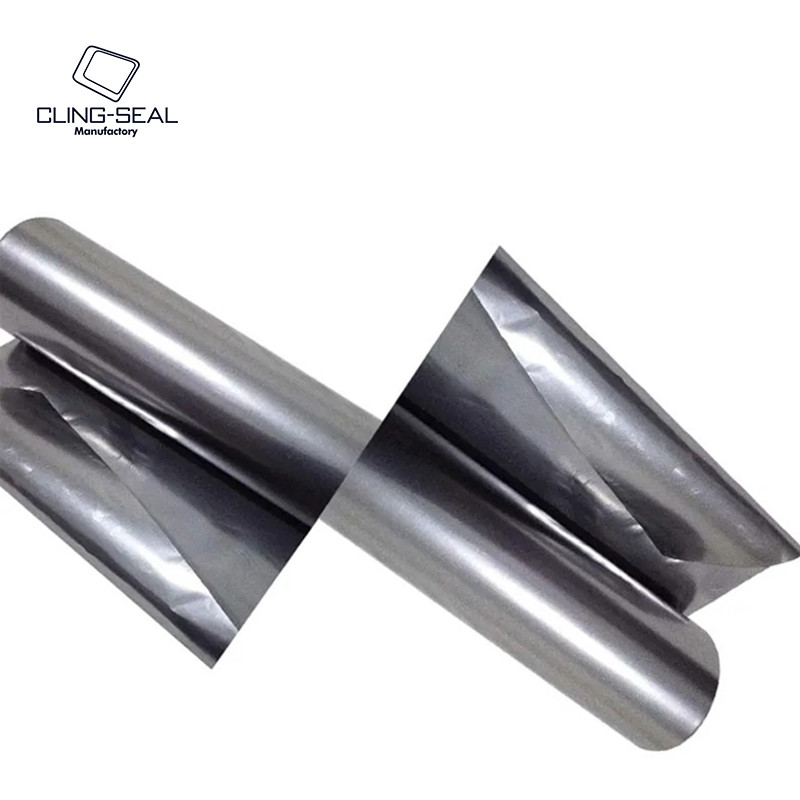

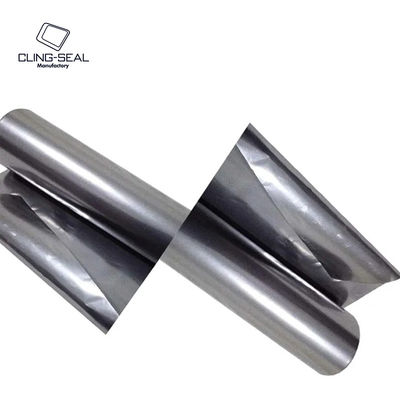

Lembar Grafit Komposit Berlapis Berganda 99% Untuk Peralatan Berputar
Lembar Grafit Komposit Berlapis Berbagai
,Peralatan Rotasi Lembar Grafit Komposit
,99% Grafit Gasket Material
Deskripsi Produk
| Artikel | Nilai Standar |
| Konsentrasi C | 99% |
| S konsentrasi | < 1000 ppm |
| konsentrasi klorin | < 45 ppm |
| kekuatan tarik | 4.5MPa |
| Kompresibilitas | > 40% |
| Pemulihan | >10% |
| Suhu | -200oC-600oC |
| Tekanan | 20MPa |
| Terence dari Ketebalan | -0,04mm ~ +0,04mm |
| Terence dari Dimensi | Sesuai dengan ukuran gasket Anda |
| Terence dari Density | - 0,06 ~ g/cm3 + 0,06 gcm3 |
Kelas terpisah:JB/T53392-1999
| Data Mekanis | Produk yang memenuhi syarat | Kelas atas | Kelas Atas | |
| Toleransi kepadatan g/cm3 |
<0.4 | ±0.10 | ±0.05 |
|
| ≥0.4 | ±0.07 | |||
| Kekuatan tarik MPa | ≥3.2 | ≥4.5 | ≥5.0 | |
| Rasio kompresi % | 35 ~ 55 | |||
| Tingkat Rebound % | ≥9 | ≥11 | ≥12 | |
| Tingkat relaksasi stres % | ≤10 | |||
| % abu | ≤6.0 | ≤3.0 | ≤1.0 | |
| Kehilangan panas pada peradangan % | 450oC | ≤1.0 | ≤0.5 | |
| 600oC | ≤20 | ≤15 | ||
Kandungan belerang |
≤1500 ppm | ≤1000 ppm | ≤600 ppm | |
Kandungan klorida |
≤100 ppm | ≤50 ppm | ≤20 ppm | |
-
Tekanan Tinggi Dynamic Sealing Graphite Gasket Sheet Smooth Finished Industrial Grade
High Pressure Industrial Graphite Sealing Gasket Products Description Product Range Flexible graphite solutions encompass sheets, foil, tape, strips, and paper-form variants, collectively known as expanded graphite materials. Manufacturing Process Natural graphite flakes undergo chemical intercalation followed by rapid thermal expansion at 800-1000°C, creating exfoliated graphite particles with a bulk density of ~3 kg/m³. These expanded particles are mechanically compacted
-
Lembar Grafit Fleksibel 1mm Tepi Limbah Sendiri Untuk Gaskets Berbentuk Khusus
Products Description 1mm Thick Flexible Graphite Gasket Sheet Flexible graphite products include sheets, foils, papers, tapes, and strips. Manufactured through chemical intercalation and thermal exfoliation of natural flake graphite, these materials form vermicular structures with ~0.003g/cm³ density. The binder-free expanded graphite is rolled into coils, offering: 99%+ purity Chemical resistance Radiation tolerance Thermal stability (-200°C to +650°C) Compression resilience
-
Lembar Gasket Grafit Penutup Industri 99,8% Kemurnian Tahan Kimia
Products Description Industrial Sealing Solution Design with Flexible Graphite Materials Engineered for critical industrial applications, our sealing solutions incorporate advanced flexible graphite materials including sheets, foils, papers, tapes, and strips. These materials are produced through a proprietary process: natural flake graphite undergoes chemical intercalation followed by thermal exfoliation at 1000°C+, forming vermicular structures with 0.003g/cm³ density. The
