Tekanan Tinggi Dynamic Sealing Graphite Gasket Sheet Smooth Finished Industrial Grade
Lembar gasket grafit penyegelan dinamis
,Lembar Gasket Grafit Finish halus
,Lembar Grafit Fleksibel Pengedap Industri
Tekanan Tinggi Industri Grafit Sealing Gasket
Deskripsi Produk
Berbagai Produk

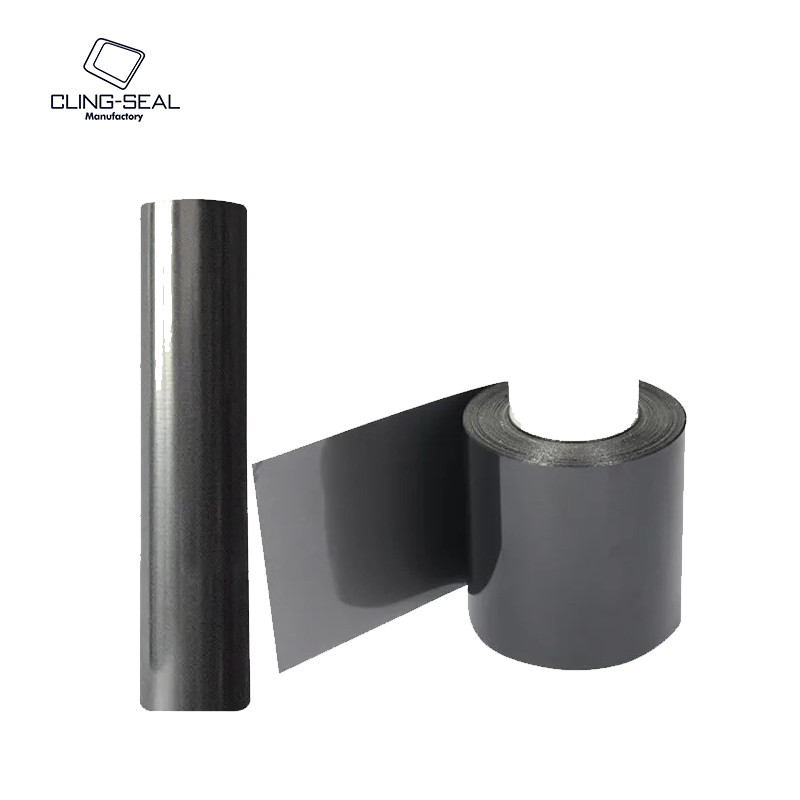

Flexible graphite solutions encompass sheets, foil, tape, strips, and paper-form variants, secara kolektif dikenal sebagai expanded graphite materials.
Proses Produksi

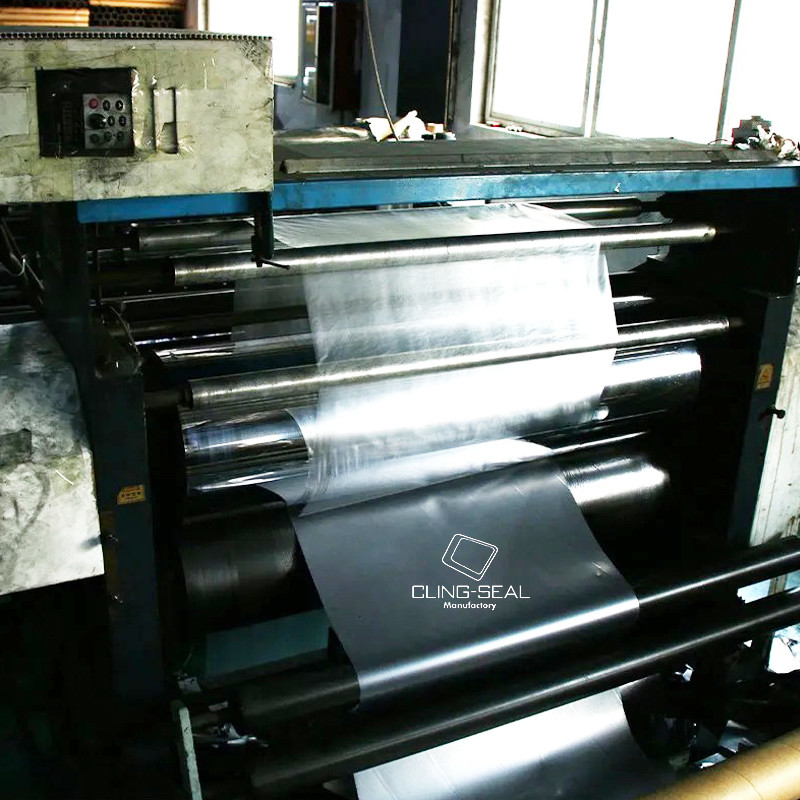

Natural graphite flakes undergo chemical intercalation followed by rapid thermal expansion at 800-1000°C, creating exfoliated graphite particles with a bulk density of ~3 kg/m3.These expanded particles are mechanically compacted into continuous coils or sheet formats without adhesives or additives. Partikel-partikel yang diperluas ini secara mekanis dikompakkan menjadi kumparan atau lembaran berturut-turut tanpa adhesives atau aditif., memastikan 99%+ kemurnian.
Keuntungan Utama
-
Stabilitas Lingkungan: Resists chemical degradation, ionizing radiation, and thermal extremes (-200°C sampai +3000°C)
-
Kinerja Mekanis: Menjaga 85%+ kompresi recovery rate after cyclic loading
-
Kompatibilitas antarmuka: Combines with stainless steel/copper sheets via lamination for hybrid structural materials (Menggabungkan dengan lembaran baja tahan karat/tembaga melalui laminasi untuk bahan struktural hibrida)
Aplikasi Industri
-
Sistem penyegelan dinamis.: Primary material for rotating shaft packing rings in pumps/valves
-
Fabrikasi Gasket Komposit: Metal-reinforced multilayer sheets die-cut into custom flange gaskets
-
Direct-Form Components: Thickened plates (3-5mm) processed into low-pressure seals or thermal barriers: lempeng tebal (3-5mm) diproses menjadi low-pressure seals atau hambatan termal
Spesifikasi Standar

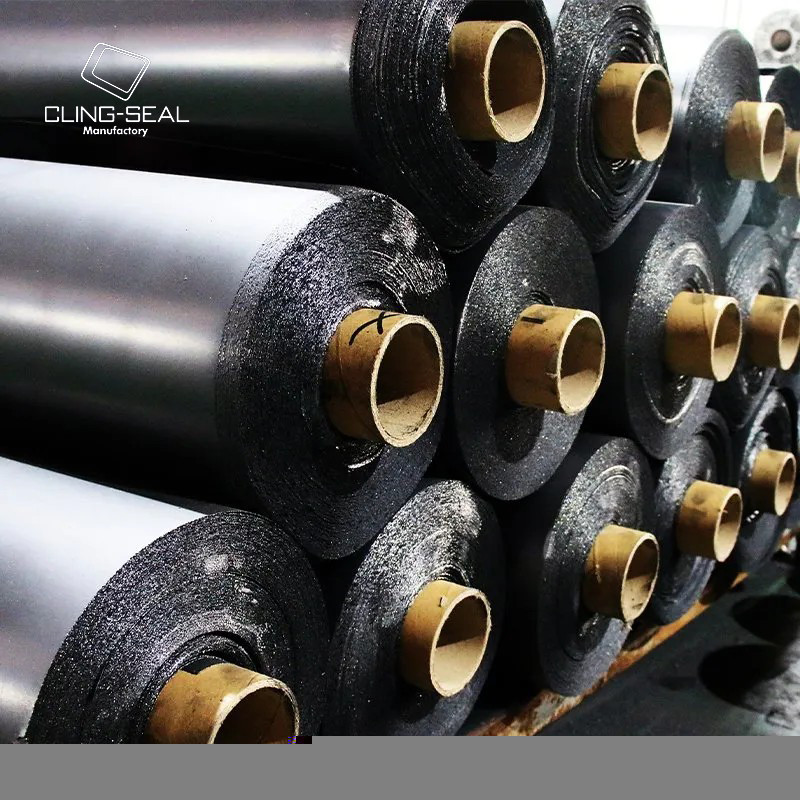

| Parameter | Coil Format | Format Sheet |
|---|---|---|
| Lebar | 1000/1500 mm | 1000/1500 mm |
| Panjang | 30/50/80m | N/A |
| Ketebalan | 0.15-1.0mm | 1.0-5.0mm |
| Kepadatan | 0.8-1.25 g/cm3 | 0.8-1.25 g/cm3 |
Note: Custom dimensional configurations and material hybrids available for OEM requirements.
Seri bahan rekayasa ini membahas tantangan penyegelan kritis di seluruh pembangkit energi, industri proses,dan industri manufaktur canggih melalui kombinasi unik konduktivitas termal (5-150 W/m·K) dan kemampuan beradaptasi struktural.
| Artikel | Nilai Standar |
| Konsentrasi C | 99% |
| S konsentrasi | < 1000 ppm |
| konsentrasi klorin | < 45 ppm |
| kekuatan tarik | 4.5MPa |
| Kompresibilitas | > 40% |
| Pemulihan | >10% |
| Suhu | -200oC-600oC |
| Tekanan | 20MPa |
| Terence dari Ketebalan | -0,04mm ~ +0,04mm |
| Terence dari Dimensi | Sesuai dengan ukuran gasket Anda |
| Terence dari Density | - 0,06 ~ g/cm3 + 0,06 gcm3 |
Kelas terpisah:JB/T53392-1999
| Data Mekanis | Produk yang memenuhi syarat | Kelas atas | Kelas Atas | |
| Toleransi kepadatan g/cm3 |
<0.4 | ±0.10 | ±0.05 |
|
| ≥0.4 | ±0.07 | |||
| Kekuatan tarik MPa | ≥3.2 | ≥4.5 | ≥5.0 | |
| Rasio kompresi % | 35 ~ 55 | |||
| Tingkat Rebound % | ≥9 | ≥11 | ≥12 | |
| Tingkat relaksasi stres % | ≤10 | |||
| % abu | ≤6.0 | ≤3.0 | ≤1.0 | |
| Kehilangan panas pada peradangan % | 450oC | ≤1.0 | ≤0.5 | |
| 600oC | ≤20 | ≤15 | ||
Kandungan belerang |
≤1500 ppm | ≤1000 ppm | ≤600 ppm | |
Kandungan klorida |
≤100 ppm | ≤50 ppm | ≤20 ppm | |
-
